Have you ever noticed your car shifting gears too roughly or hesitating when you accelerate? It might be time to take a look at the vacuum modulator. This small but crucial component plays a big role in how smoothly your vehicle operates.
In this article, you’ll learn how to adjust the vacuum modulator and improve your car’s performance. Whether you’re a seasoned DIYer or just starting out, you’ll find simple steps that make the process easy. By the end, you’ll feel confident tackling this adjustment and enjoy a smoother ride on the road.
Key Takeaways
- Importance of Vacuum Modulator: The vacuum modulator is crucial for regulating transmission fluid pressure, directly affecting gear shifting and overall vehicle performance.
- Symptoms of Malfunction: Watch for signs like hard shifting, slipping gears, delayed shifts, high RPMs, and inconsistent shifting, which may indicate a faulty modulator.
- Adjustment Process: Adjusting the vacuum modulator involves connecting a vacuum gauge, making small adjustments to the modulator screw, and testing the vehicle’s performance post-adjustment.
- Required Tools: Key tools for adjustment include a socket set, wrench set, screwdrivers, a vacuum gauge, and safety gear to ensure a safe and effective process.
- Common Issues and Solutions: Regularly inspect vacuum lines for damage, check fluid levels, listen for unusual noises, and consult repair manuals to diagnose and resolve modulator issues.
- Seek Professional Help: If troubleshooting fails, consulting a mechanic can provide insights into persistent problems that require expert attention.
Understanding Vacuum Modulators
Vacuum modulators play a crucial role in your vehicle’s transmission system. They help control shift points based on engine load, ensuring smooth acceleration and shifting.
What Is a Vacuum Modulator?

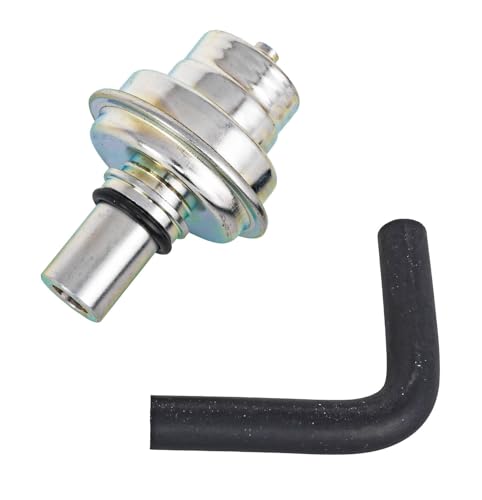

A vacuum modulator is a small device found in many automatic transmission systems. It’s usually mounted on the transmission and uses engine vacuum to adjust transmission fluid pressure, which affects how your vehicle shifts gears. When vacuum levels change, the modulator alters fluid pressure, allowing for smoother gear transitions. This device is vital for maintaining optimal vehicle performance.
How Vacuum Modulators Work
Vacuum modulators operate based on the engine’s vacuum system. Here’s a simplified breakdown:
- Engine Vacuum Generation: As the engine runs, it creates a vacuum in the intake manifold. This vacuum reflects engine load and RPM.
- Signal to Modulator: The vacuum modulator receives this vacuum signal. It reads the vacuum levels and adjusts the pressure of the transmission fluid accordingly.
- Fluid Pressure Adjustment: When there’s high vacuum, the modulator reduces fluid pressure, resulting in earlier shifts. Conversely, low vacuum increases fluid pressure, causing later shifts.
This process allows your vehicle to shift gears efficiently based on driving conditions. Signs of a malfunctioning vacuum modulator include hard shifting or slipping. Adjusting or replacing it improves overall performance.
Tools Required for Adjustment
Adjusting a vacuum modulator requires specific tools and safety equipment to ensure the process goes smoothly and effectively.
Essential Tools
- Socket Set: Use a socket set, including both standard and deep sockets, to remove the modulator and other attached components.
- Wrench Set: A wrench set provides the necessary leverage for loosening and tightening bolts.
- Screwdrivers: Flathead and Phillips screwdrivers help with any screws securing components around the modulator.
- Vacuum Gauge: A vacuum gauge measures the engine’s vacuum level, aiding in accurate adjustment of the modulator.
- Pliers: Pliers might come in handy for gripping and twisting small components.
- Torque Wrench: A torque wrench ensures you apply the correct amount of force when tightening bolts, preventing damage to components.
- Safety Glasses: Protect your eyes from debris or fluid splashes while working on the vehicle.
- Gloves: Wear chemical-resistant gloves to protect your hands from oil and transmission fluid.
- Dust Mask: A dust mask keeps you safe from inhaling any dust or fumes that may arise during the adjustment.
- Fire Extinguisher: Keep a fire extinguisher nearby, especially when working with fuel or fluids that could ignite.
- First Aid Kit: A first aid kit ensures you’re prepared for minor injuries that can occur during maintenance work.
Steps to Adjust a Vacuum Modulator
Adjusting a vacuum modulator involves several clear steps to ensure accurate changes in your vehicle’s transmission system.
Step 1: Identify the Modulator
Locate the vacuum modulator on your transmission. It’s usually found on the right side of the transmission body. Look for a small cylindrical component attached to the transmission with a rubber vacuum line connected. If you can’t find it, refer to your vehicle’s service manual for specific details.
Step 2: Prepare the Vehicle
Ensure your vehicle is parked on a flat surface and the engine is cool. Secure it with wheel chocks. Gather your tools: socket set, wrench set, screwdrivers, vacuum gauge, and safety gear, including safety glasses and gloves. Disconnect the battery to avoid electrical issues while working.
Step 3: Make the Necessary Adjustments
Connect the vacuum gauge to the modulator. Start the engine and monitor the vacuum readings. Adjust the modulator as needed by loosening the adjustment screw slightly and turning it clockwise or counterclockwise. Small adjustments can significantly impact performance, so keep changes minimal. Once adjusted, tighten the screw securely and disconnect the gauge. Test drive the vehicle to assess the shift quality before finalizing any adjustments.
Common Issues with Vacuum Modulators
Vacuum modulators can face several issues that affect their performance. Identifying these problems early helps maintain your vehicle’s transmission system.
Symptoms of a Faulty Modulator
- Hard Shifting: You may notice the vehicle struggles to shift smoothly between gears. This can lead to a jerky driving experience.
- Slipping Gears: If the transmission unexpectedly slips out of gear, a faulty modulator might be the culprit. This instability can create safety hazards.
- Delayed Shifting: A noticeable delay when shifting gears can indicate that the modulator isn’t functioning correctly. This delay impacts overall driving performance.
- High RPMs: You might experience unusually high engine RPMs during shifts. This inefficiency may lead to increased fuel consumption and engine strain.
- Inconsistent Shifting: Shifts that feel inconsistent—sometimes smooth, sometimes rough—often point to a modulator issue. Consistency is crucial for driving comfort.
- Inspect Connections: Check all vacuum lines connected to the modulator for cracks or leaks. Replacing damaged lines can resolve many issues.
- Test Vacuum Pressure: Use a vacuum gauge to measure the pressure. Low readings suggest the modulator might not be receiving enough vacuum, affecting performance.
- Check Fluid Levels: Ensure the transmission fluid is at the correct level. Low fluid can worsen modulator performance, impacting shifting.
- Listen for Unusual Noises: Pay attention to any strange sounds while driving. A hissing or whining noise may indicate an issue with the modulator.
- Consult Repair Manuals: Refer to your vehicle’s service manual for specific diagnostic steps related to your vacuum modulator model. This resource can offer targeted insights.
- Seek Professional Help: If problems persist or you’re unsure, consult a certified mechanic. Professional assessments can identify issues that may not be visible.
Conclusion
Adjusting a vacuum modulator might seem daunting but it’s definitely manageable with the right approach. By keeping an eye on your car’s shifting behavior and addressing any issues promptly, you can maintain a smoother driving experience. Remember to take your time during inspections and adjustments to ensure everything’s working as it should.
Don’t hesitate to reach out for help if you hit a snag along the way. Your vehicle deserves the best care and attention to keep it running smoothly for years to come. Happy driving!
Frequently Asked Questions
What is a vacuum modulator in a car’s transmission system?
A vacuum modulator is a key component in an automatic transmission system that regulates the shift points based on engine vacuum. It ensures smooth gear changes by adjusting the transmission fluid pressure according to the engine load and driving conditions.
Why is it important to adjust or replace a malfunctioning vacuum modulator?
Adjusting or replacing a malfunctioning vacuum modulator is crucial for maintaining optimal transmission performance. It helps prevent issues like hard shifting, slipping gears, and delayed shifting, enhancing the overall driving experience and prolonging the transmission’s lifespan.
What are common issues with vacuum modulators?
Common issues with vacuum modulators include hard shifting, slipping gears, delayed shifting, high RPMs, and inconsistent shifting. These problems can result from various factors, such as damaged connections or low vacuum pressure.
How can I inspect my car’s vacuum modulator?
To inspect your car’s vacuum modulator, check the connections for wear or damage, test the vacuum pressure using a gauge, verify fluid levels, and listen for any unusual noises when shifting. This ensures that the modulator is functioning properly.
When should I seek professional help regarding my vacuum modulator?
Seek professional help if you notice persistent issues with shifting or if your inspection reveals serious problems like damaged components or inconsistent vacuum pressure. A qualified mechanic can provide a thorough diagnosis and repair.
