Have you ever noticed your pellet stove struggling to ignite or maintain a steady flame? It can be frustrating, especially during those chilly winter nights. One common culprit behind these issues is a faulty vacuum switch.
Key Takeaways
- Understanding Functionality: Pellet stoves rely on a vacuum switch to regulate airflow and combustion efficiency, crucial for optimal performance during colder months.
- Symptoms of Failure: Common indicators of a bad vacuum switch include error codes, inconsistent flame quality, frequent shutdowns, and unusual blower fan noises.
- Impact on Efficiency: A faulty vacuum switch can lead to ignition problems, poor heat output, increased pellet consumption, and potential safety hazards like carbon monoxide buildup.
- Testing Methods: Use a multimeter and vacuum gauge to accurately assess the vacuum switch’s condition, checking for electrical continuity and proper vacuum pressure.
- Replacement Criteria: Consider replacing the vacuum switch if persistent issues occur, ensuring compatibility, quality, and the correct pressure ratings when sourcing a new part.
Understanding Pellet Stoves
Pellet stoves provide an efficient heating option using compressed wood pellets. They offer a convenient way to enjoy warmth during the colder months, but understanding their operation is crucial for optimal performance.
How They Operate
Pellet stoves utilize an electric auger to feed pellets from a hopper into a burn pot. The igniter heats the pellets, creating a flame fueled by a fan that circulates air for combustion. Exhaust gases exit through a vent system. This operation relies on a proper vacuum system to maintain airflow, which keeps the flame steady and efficient.
Importance of the Vacuum Switch
The vacuum switch plays a vital role in your pellet stove’s functionality. It monitors air pressure levels within the system. If airflow becomes restricted, the vacuum switch interrupts the stove’s operation, preventing unsafe conditions. A faulty vacuum switch can lead to ignition failures, poor flame quality, or even safety hazards. Regularly checking the vacuum switch can help ensure your stove operates smoothly and safely.
Symptoms of a Bad Vacuum Switch
A bad vacuum switch can significantly affect your pellet stove’s performance. Here are the key symptoms to look for that indicate a potential issue.
Common Warning Signs
- Error Codes: Most modern pellet stoves display error codes related to vacuum pressure. If you notice a vacuum switch error code on your control panel, inspect the switch.
- Flame Issues: An inconsistent or weak flame often signals vacuum problems. If your stove struggles to maintain a steady flame, check the vacuum switch.
- Frequent Shutdowns: If your stove shuts down unexpectedly or fails to start, the vacuum switch might malfunction. This could prevent it from detecting proper airflow.
- Noise Changes: Increased noise from the blower fan can indicate airflow problems linked to the vacuum switch. If you hear unusual sounds, investigate further.
Impact on Stove Performance
A faulty vacuum switch directly impacts several critical functions:
- Ignition Problems: Insufficient air pressure can hinder ignition. If the stove can’t light, a failing vacuum switch may be the culprit.
- Poor Heat Output: A bad vacuum switch leads to inadequate combustion, resulting in decreased heat. You might feel less warmth in your space when the stove runs inefficiently.
- Increased Pellet Consumption: Ineffective burning of pellets can cause higher usage. If your stove consumes more pellets than usual, check the vacuum switch.
- Safety Hazards: A malfunctioning vacuum switch can create safety risks. Ensure the switch operates correctly to prevent possible carbon monoxide buildup.
By recognizing these symptoms, you can take appropriate steps to resolve any issues related to your pellet stove’s vacuum switch. Regular monitoring helps maintain optimal performance and safety.
Testing the Vacuum Switch
Testing the vacuum switch helps determine if it functions correctly. This process involves specific tools and clear steps to ensure accurate results.
Tools Needed
- Multimeter: Measures electrical voltage and continuity.
- Vacuum Gauge: Checks the vacuum pressure in the stove.
- Screwdriver: Helpful for accessing the vacuum switch.
- Safety Goggles: Protects your eyes while working on the stove.
- Gloves: Keeps your hands safe and clean.
- Turn Off Power: Always start by unplugging the pellet stove. This step ensures your safety during testing.
- Locate the Vacuum Switch: Use your screwdriver to remove the cover panel. Find the vacuum switch, typically near the burn pot or exhaust area.

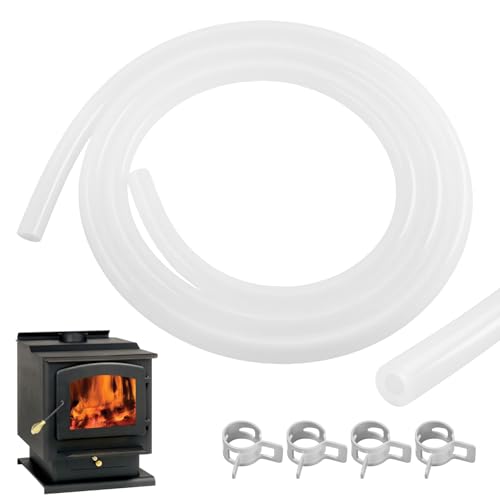

- Check for Blockages: Inspect the tubing connected to the vacuum switch. Clear any debris or blockages that might affect airflow.
- Test with a Multimeter: Set your multimeter to measure resistance. Disconnect the wires from the vacuum switch. Touch the probes to the terminals. A reading near zero indicates a good switch.
- Use a Vacuum Gauge: Attach the vacuum gauge to the tubing. Start the stove. Monitor the gauge for expected vacuum readings. Most pellet stoves require a reading between 0.4 and 0.6 inches of water column.
- Inspect Switch Operation: Listen for a clicking sound when the vacuum switch engages. If there’s no sound or it doesn’t engage, the switch may be bad.
- Reassemble Everything: Once testing is complete, reconnect the wiring and replace any cover panels. Ensure everything is secure before turning the stove back on.
- Monitor Stove Performance: After reassembling, observe your stove’s operation. Look for any persisting issues like error codes or inconsistent flames.
These steps help accurately assess the vacuum switch’s condition, ensuring your pellet stove runs efficiently and safely.
Replacement Options
When your pellet stove’s vacuum switch shows signs of failing, replacing it promptly ensures safe and efficient operation. Consider these key aspects before moving forward.
When to Replace the Switch
Replace the vacuum switch if you notice persistent issues like error codes, unusual noises, or a failed pressure test. Look for symptoms such as:
- Error Codes: Visual warnings on the control panel often indicate a vacuum switch failure.
- Inconsistent Heat: Difficulty maintaining a steady temperature can signal a malfunction.
- Short Cycling: Frequent shut-offs of the stove without reaching the desired temperature may also point to a faulty switch.
If you’ve tested the switch and it isn’t functioning properly, or if it fails when you attempt a pressure test, it’s time for a replacement.
Choosing the Right Replacement
Select a suitable vacuum switch by considering these factors:
- Compatibility: Ensure the new switch matches the model of your pellet stove. Check the manufacturer’s specifications.
- Quality: Opt for durable switches from reputable brands to avoid frequent replacements.
- Pressure Ratings: Confirm that the new switch has the same vacuum pressure rating as the original for optimal performance.
Purchasing from authorized dealers or trusted online retailers helps ensure you get the right part. Consult your stove’s manual for specific installation instructions once you’ve chosen the right replacement.
Conclusion
Keeping your pellet stove running smoothly is all about paying attention to the vacuum switch. If you notice any signs of malfunction it’s essential to take action quickly. Regular testing and maintenance can save you from bigger issues down the road.
When it’s time to replace the switch make sure you choose a compatible and high-quality part. This will help ensure your stove operates efficiently and safely. By staying proactive you can enjoy the warmth and comfort your pellet stove provides without any interruptions.
Frequently Asked Questions
What is the role of a vacuum switch in a pellet stove?
The vacuum switch in a pellet stove ensures proper airflow, which is crucial for optimal performance and safety. It monitors the pressure inside the stove, allowing it to operate efficiently and prevent potential hazards.
How can I tell if my vacuum switch is faulty?
Symptoms of a faulty vacuum switch include error codes, inconsistent heat output, and unusual noises from the stove. If you notice any of these signs, it’s essential to test the switch promptly.
How do I test a vacuum switch?
To test a vacuum switch, use a multimeter to check for continuity and a vacuum gauge to measure pressure. This process will help determine if the switch is functioning correctly or needs replacement.
When should I replace my vacuum switch?
Replace your vacuum switch when you see consistent error codes, experience irregular heating, or find that the stove doesn’t operate as it should. Prompt replacement is crucial for safe operation.
What should I consider when buying a replacement vacuum switch?
When purchasing a replacement vacuum switch, ensure it is compatible with your stove model, check its quality and reliability, and verify the pressure ratings. It’s recommended to buy from authorized dealers for warranties and support.
